RFID Seal



E101
Description

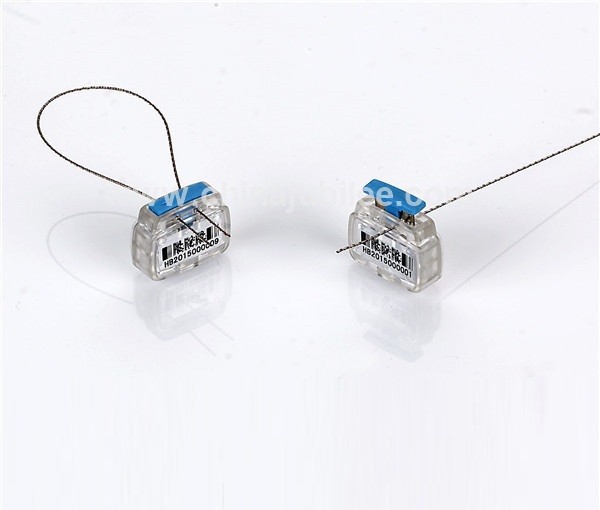

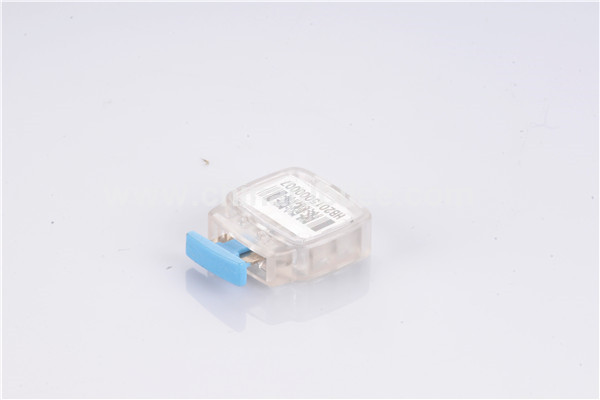

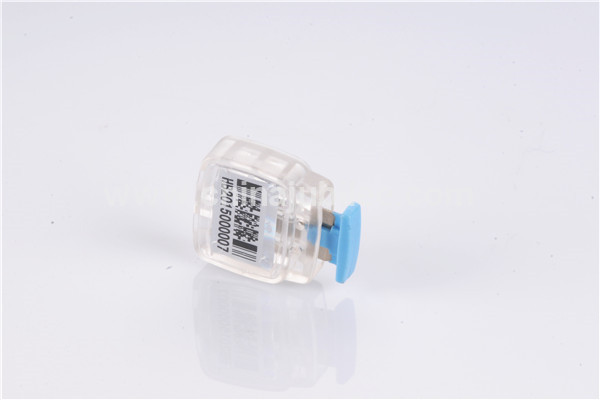

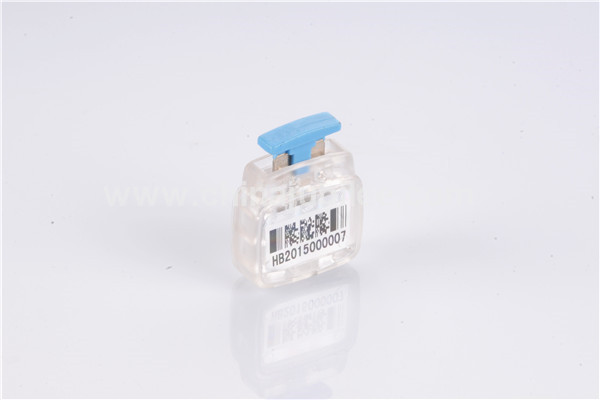

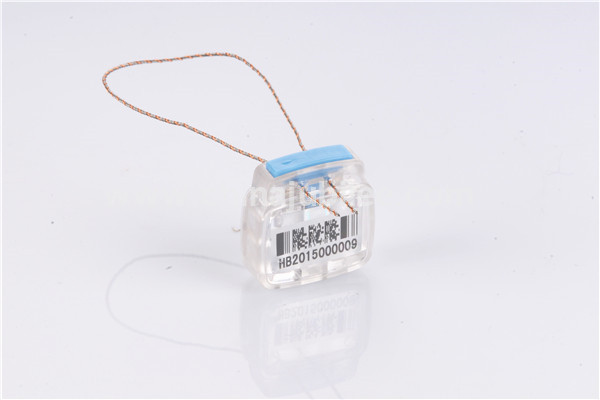

High Security RFID Seal E101 is with RFID inside of the seal.The RFID seals of Jubilee Chinese manufacture are C-TPAT compliant and meets the ISO 17712 standard for High Security Seals, which can be read and is tamper proof and tamper evident and have laser printing with logos, barcode and serial number with customized demand.



The applications are shipping container, truck trailers, customs, transport and logistics, aircraft cargos, rail cars, tankers, valves, petroleum chemicals, etc.

RFID Seal

RFID Seal

RFID Seal

RFID Seal

RFID Seal

sample is free.jpg

Specification:

Certification

1. ISO/PAS 17712

2. ISO 9001:2008

3. C-TPAT compliant

Specification

1.Materials: ABS plastic

2.Metal insert lock mechanism,stainless steel locking piece.

3.One-piece construction

4.With RFID chip

5.Dimension: 24mm(L)*18mm(H)*9mm(W).

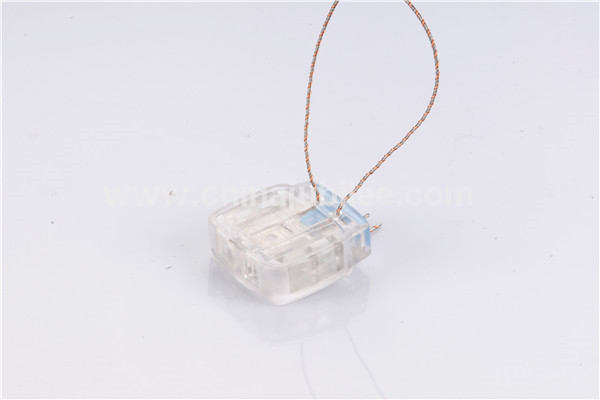

6.body is transparent for the visual control of integrity, lock insert is nontransparent.

7.Metallic spiral wire:stainless steel wire coated plastic, iron wire, copper wire.

8.0.6mm diameter wire with standard length 30cm, length is also available on request.

9.The wire can be supplied separately or attached at the seal itself.

10.Installation:Pass wire through two holes in the body,and then push the lock insert down to achieve perfect closure.

11.Removal by cable cutters

12.Approx. tensile strength:19KG

13.Operating temperature: -20˚C to 80˚C/-4˚F to 176˚F

Application

Airlines, Cargo, Container, Trucks, Containers, Rail freight, Warehouses,

Courier bags, Cash bag, Post bags, Lockers, Tote box, Pins, etc.

Print

laser engraving

Your company name or logo

Sequential number

Bar code decoration can also be available

Color

Any other color can be available.

Packaging

Standard packaging:1000pcs/ctn

Carton dimension:36.5cm*24cm*18cm

Gross weight:3.6KG

Net weight:2.9KG
