Bolt Seal B109
Description

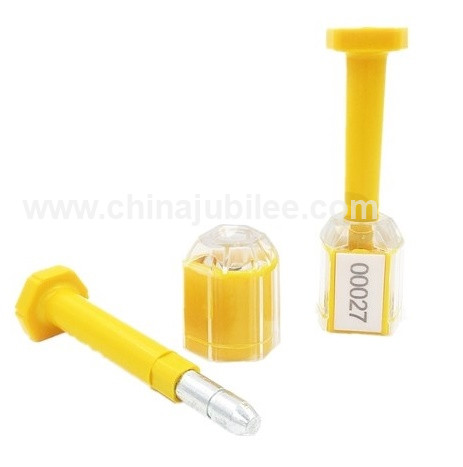

High security bolt seal B109 is C-TPAT and ISO 17712 compliant seals. The bolt seals are plastic coated steel lock device with good quality made in China, which are tamper proof and tamper evident with high strength tensile and the laser printing with logos, barcode and serial number upon custom demand.



The applications are shipping containers doors, transport truck trailer, container door, cargo trucks logistics, customs, vehicle, etc..


To see more bolt seals, please click here.





sample is free.jpg

Specifications

Material

Q235A steel and ABS plastic, galvanized low carbon steel, wrapped with ABS

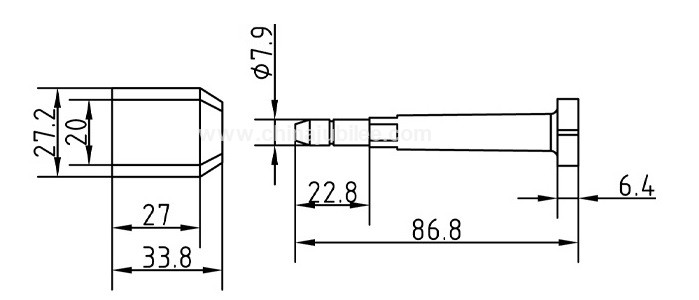

Total Length

86.8 mm

Mother Length

33.8 mm

Tensile Strength

>15 KN

Packing


Carton Dimensions

50.5cm * 34cm * 14cm

Weight

16 KG

Quantity

250 PCS per carton

Features

A. Self locking, no tools required

B. Key less

C. Pull tight locking mechanism

D. Removable by bolt or cable cutters, eyes protection is necessary

Customized Opinion

Print

Thermal stamping or laser printing

Customer’s company name, logo

sequential numbers

Bar code is available

Color

Red, yellow, green, blue, white, black, orange, gray etc.
